TPU TPEmonofilament Extruding Machine

The annual output will reach 1000 sets, with a value of 60 million yuan. Our products enjoy a good reputation at home and abroad, and export to more than 20 countries and regions such as Japan and southeast Asia.Company Introduction

Availability:

Quantity:



Inquire Add to Basket

Product Description

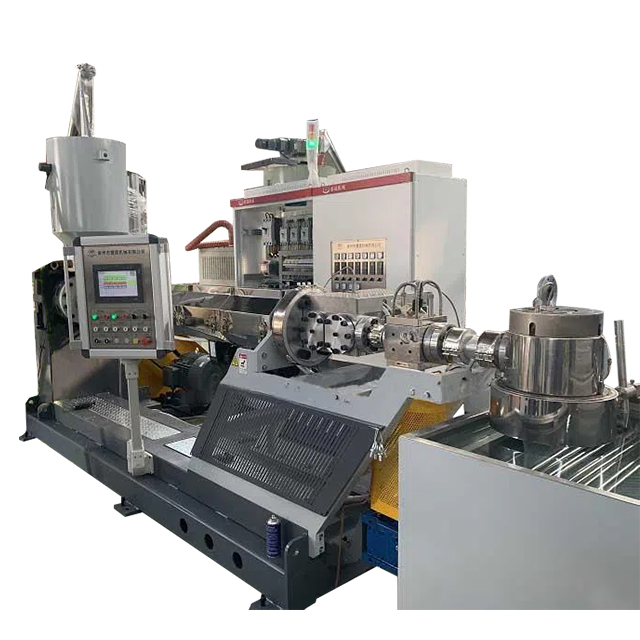

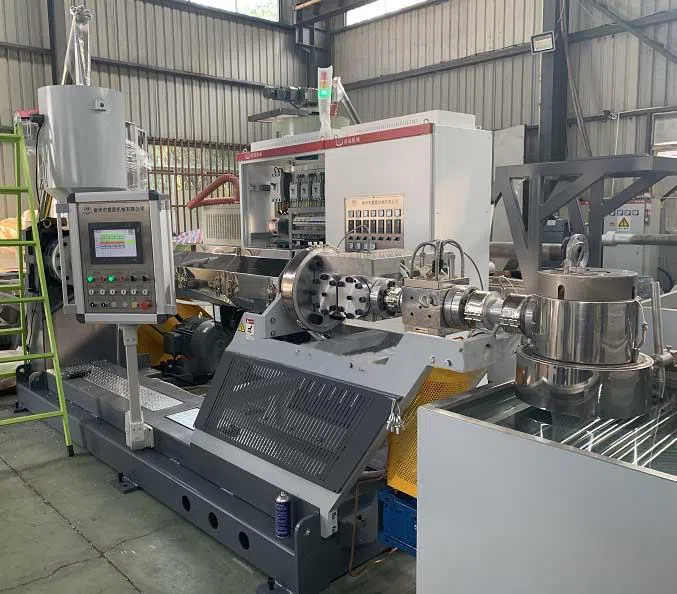

TPU/TPE monofilament extruding machine is special design for fancy mattresses and cushions, which is composed of extruder,stretching unit, hot water tank, hot blast oven and spindle winder.

The perfect mechanical properties ensure the stability of monofilaments and the sophisticated electric control system make the operation convenient and efficient.

SPECIFICATION FOR MONOFILAMENT EXTRUDING MACHINE
EXTRUDER	Screw	70mm
	Motor	22kw
	Metering pump	30cc
	Spinneret	1 set
QUENCHING BATH	Height adjustable
QUENCHING BATH	Air chiller	5HP
STRTECHING UNIT A	Roller length	600mm
STRTECHING UNIT A	Motor	5.5kw
HOT WATER TANK	Length	4000mm
HOT WATER TANK	Heating power	35kw
STRTECHING UNIT B	Roller length	600mm
STRTECHING UNIT B	Motor	7.5kw
HOT AIR STRETCHING OVEN	Length	4000mm
HOT AIR STRETCHING OVEN	Heating power	22.5kw
STRTECHING UNIT C	Roller length	600mm
STRTECHING UNIT C	Motor	7.5kw
HOT AIR ANNEALING OVEN A	Length	4000mm
HOT AIR ANNEALING OVEN A	Heating power	22.5kw
HOT AIR ANNEALING OVEN B	Length	4000mm
HOT AIR ANNEALING OVEN B	Heating power	22.5kw
STRTECHING UNIT D	Roller length	600mm
STRTECHING UNIT D	Motor	5.5kw
WASTER YARN COLLECTOR	Motor	1.1kw
SPINDLE WINDER	180 spindles	back to back type
