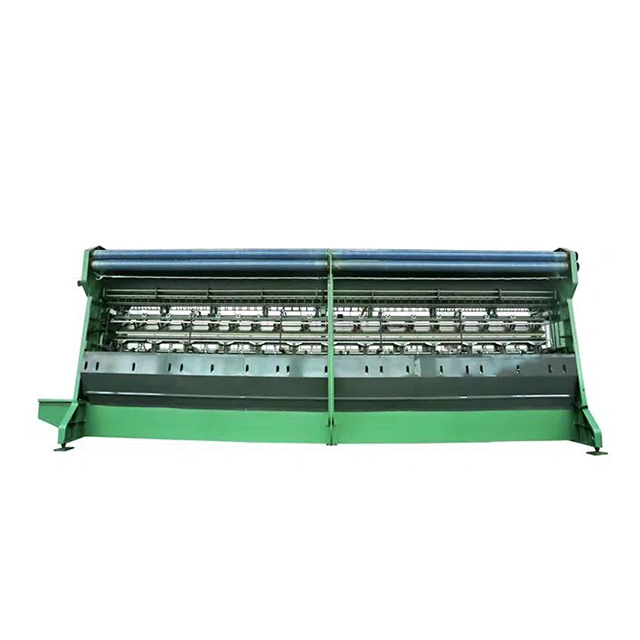

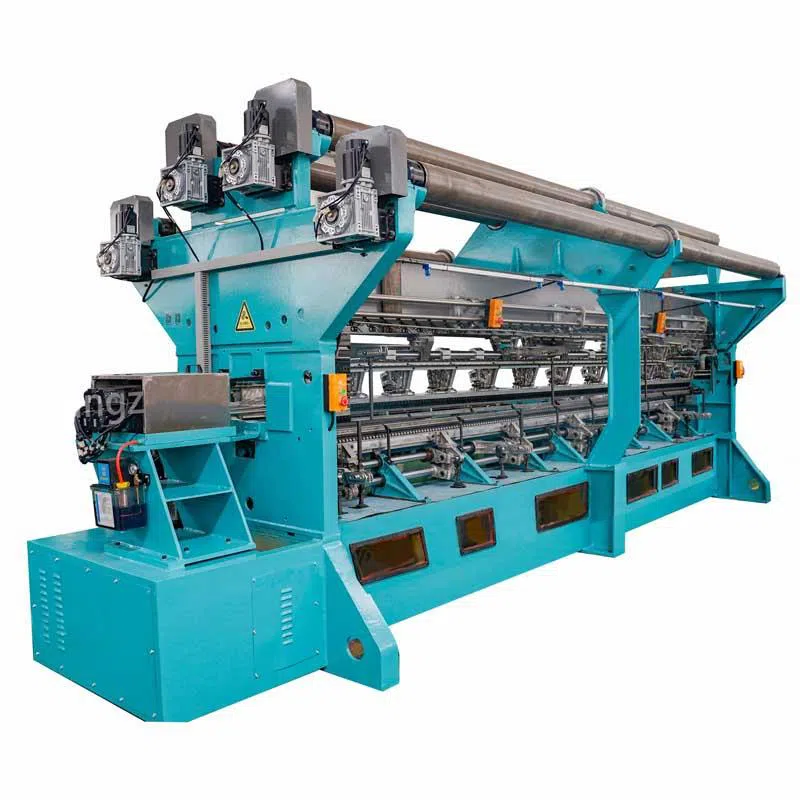

Single Needle Warp Knitting Machine

Purpose And Feature

This machine is apt for the production of 3D-mattress,coral flannelette seat cushion and the other sandwish fabric.The machine is equipped with oil soaking connecting wheel system,embed latch needle,six spindle electronic let-off,electronic take up,and synchronous belt drive.

Technical Data

1 Working needles: Latch needle or embed latch needle

2 Machine gauge:E8,E12,E16,E18,E22

3 Nominal width:2387mm(94'')

4 Number of guide bars:6

5 Yarn let-off device:electronic beam control

6 Pattern drive device:N-drive with pattern drum

7 Trick plate distance infinitely variable:3-30mm

8 Fabric take-up:electronic control

9 Batching device:2 rollers with friction drive,separately-standing

10 Motor:main motor:3-prase asynchronous motor,3KW,with frequency convertor controlled,inching motor:1.1KW

11 Machine speed(RPM):350-500

12 Beam:21inch

13 Machine size:4900*4300*3200mm(L*w*h)

14 Machine weight:approx.6000Kg
