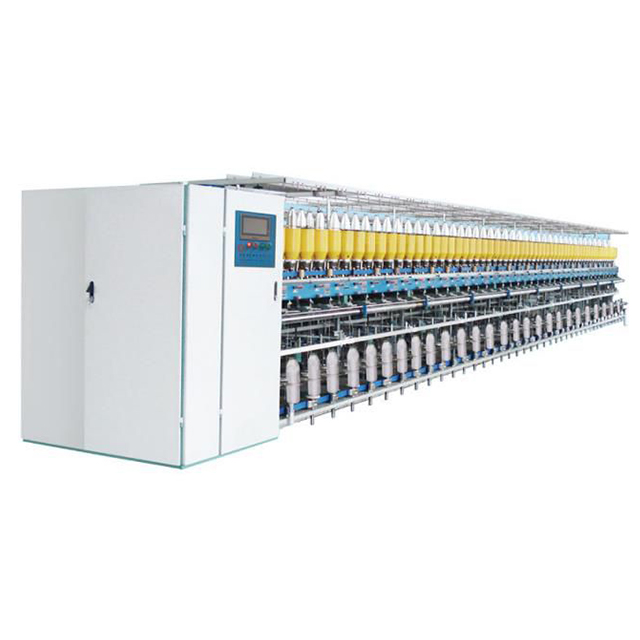

Ring Twister Machine

Yx2007-a-type full-automatic double twist composite twister is A new generation of products to be developed and upgraded on the basis of yx2010-C CNC automatic compound twisting machine. The machine can be finished in the same machine with single-filament twist, combine, compound, multi- strand twist etc.
Availability:
Quantity:
Inquire Add to Basket


Product details


Type

Double

Twist

S/Z

Number of spindles

Double twist 288 spindles
Lower ring 96 spindles

Meter clock

Computer meter long

Spindle pitch

Upper 230mm,Lower 345mm

Brake Type

Treadle type

Lift

400mm

Electrical

380v 50HZ

Steel diameter

Φ125mm、Φ140mm
Φ165mm、Φ180mm

Roller diameter

Double roller phi 50.8mm or (capstam roller)

Spindle speed

1000-6000r/m

Motor power

5.5*2+2.2+1.5+15KW

Operation mode

Double operation

Spindle tape

Around for pounds

Wharve diameter

Φ50mm

Boundary dimension

18560mm*1400mm*2200mm

Spindle blade diameter

Φ15mm

Twist range

60-650t/m



Composite twister,double twisting machine,new two-step spinning twisting machine and other seven kinds of more than ten varieties, product structure is complete, is a larger scale, variety complete textile machinery professional manufacturers.
