Nylon monofilament extruding machine is special design for PA6 and PA66 which is composed of extruder, stretching unit, hot water,tank, hot blast oven and spindle winder. It is widely used for making fishing nets, fishing line shore nets, sewing lines, trimmer,line ect.
The perfect mechanical properties ensure the stability of monofilaments and the sophisticated electric control system make the operation convenient and efficient.
MONOFILAMENT EXTRUDING MACHINE | ||
EXTRUDER | Screw | 70mm |
Motor | 22kw | |
Metering pump | 30cc | |
Spinneret | 1 set | |
QUENCHING BATH | Height adjustable | |
Air chiller | 5HP | |
STRTECHING UNIT A | Roller length | 600mm |
Motor | 5.5kw | |
HOT WATER TANK | Length | 4000mm |
Heating power | 35kw | |
STRTECHING UNIT B | Roller length | 600mm |
Motor | 7.5kw | |
HOT AIR STRETCHING OVEN | Length | 4300mm |
Heating power | 22.5kw | |
STRTECHING UNIT C | Roller length | 600mm |
Motor | 7.5kw | |
HOT AIR ANNEALING OVEN A | Length | 4300mm |
Heating power | 22.5kw | |
HOT AIR ANNEALING OVEN B | Length | 4300mm |
Heating power | 22.5kw | |
STRTECHING UNIT D | Roller length | 600mm |
Motor | 5.5kw | |
WASTER YARN COLLECTOR | Motor | 1.1kw |

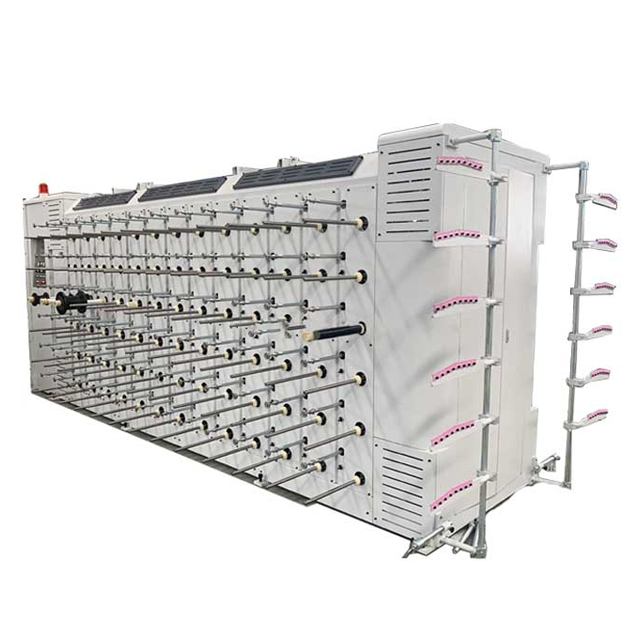

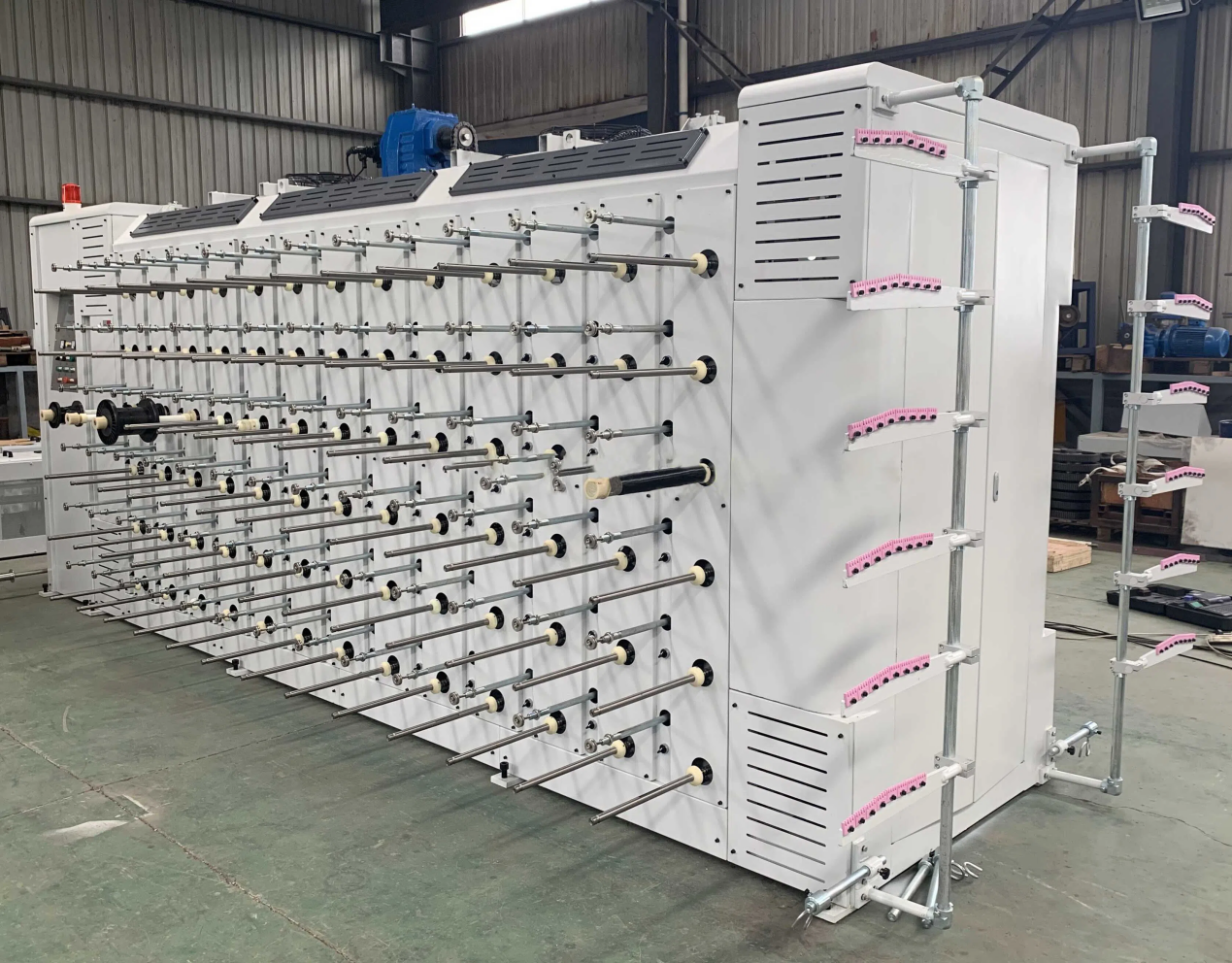

SPINDLE WINDER | 180 spindles | back to back type |
Nylon monofilament extruding machine is special design for PA6 and PA66 which is composed of extruder, stretching unit, hot water,tank, hot blast oven and spindle winder. It is widely used for making fishing nets, fishing line shore nets, sewing lines, trimmer,line ect.
The perfect mechanical properties ensure the stability of monofilaments and the sophisticated electric control system make the operation convenient and efficient.
MONOFILAMENT EXTRUDING MACHINE | ||
EXTRUDER | Screw | 70mm |
Motor | 22kw | |
Metering pump | 30cc | |
Spinneret | 1 set | |
QUENCHING BATH | Height adjustable | |
Air chiller | 5HP | |
STRTECHING UNIT A | Roller length | 600mm |
Motor | 5.5kw | |
HOT WATER TANK | Length | 4000mm |
Heating power | 35kw | |
STRTECHING UNIT B | Roller length | 600mm |
Motor | 7.5kw | |
HOT AIR STRETCHING OVEN | Length | 4300mm |
Heating power | 22.5kw | |
STRTECHING UNIT C | Roller length | 600mm |
Motor | 7.5kw | |
HOT AIR ANNEALING OVEN A | Length | 4300mm |
Heating power | 22.5kw | |
HOT AIR ANNEALING OVEN B | Length | 4300mm |
Heating power | 22.5kw | |
STRTECHING UNIT D | Roller length | 600mm |
Motor | 5.5kw | |
WASTER YARN COLLECTOR | Motor | 1.1kw |
SPINDLE WINDER | 180 spindles | back to back type |
