Monofilament Extruding Machine For Danling And Rope

The annual output will reach 1000 sets, with a value of 60 million yuan. Our products enjoy a good reputation at home and abroad, and export to more than 20 countries and regions such as Japan and southeast Asia.Company Introduction

Availability:

Quantity:



Inquire Add to Basket

Product Description

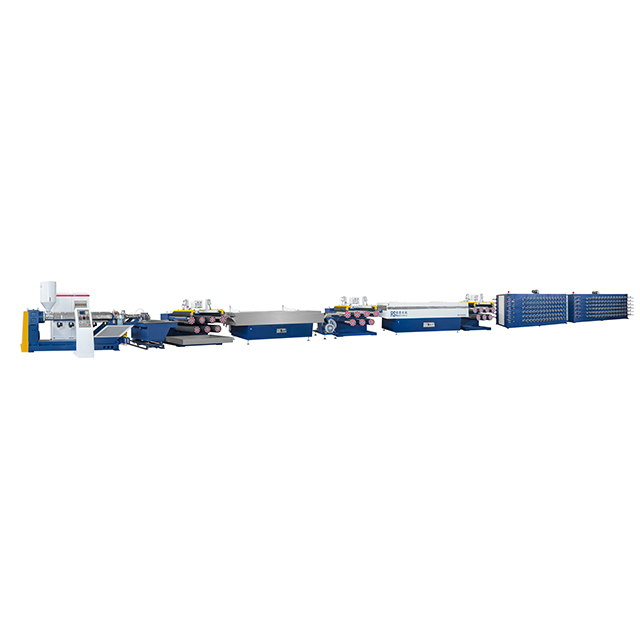

PP monofilament extruding machine is is suitable for producing danline, rope, belt.which is composed of extruder, stretching unit,hot blast oven and twisting winder.

The perfect mechanical properties ensure the stability of monofilaments and the sophisticated electric control system make the operation convenient and efficient.

MONOFILAMENT EXTRUDING MACHINE
EXTRUDER	screw	110
	motor	110kw
	metering pump	100cc × 2 sets
	spinneret	2
QUENCHING BATH	height adjustable

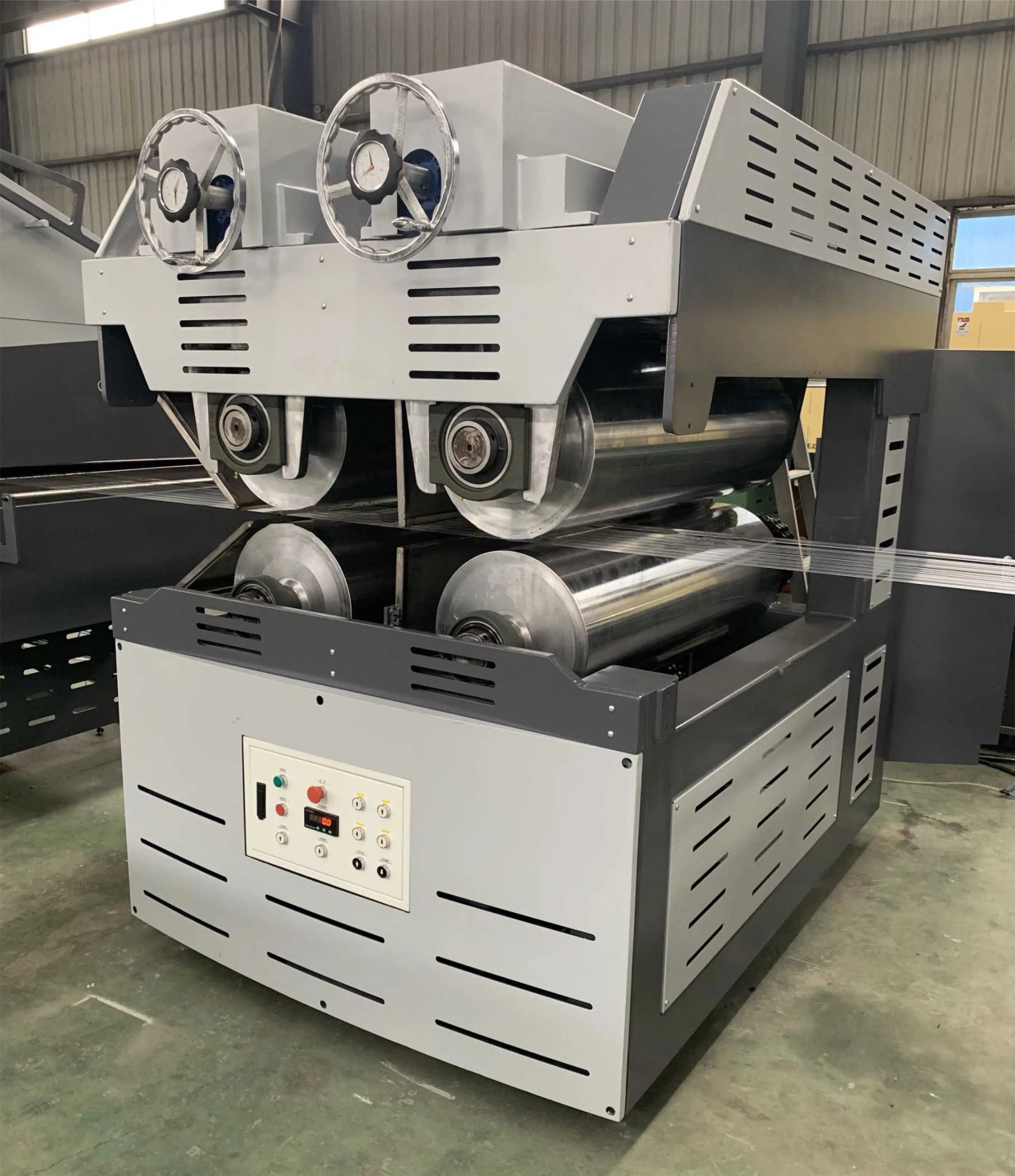

STRETCHING UNIT A	roller length	1200mm
STRETCHING UNIT A	motor power	11kw
HOT STETCHING OVEN A	length	5000mm
HOT STETCHING OVEN A	heating power	45kw
HOT STETCHING OVEN B	length	5000mm
HOT STETCHING OVEN B	heating power	45kw
STRETCHING UNIT B	roller length	1200mm
STRETCHING UNIT B	motor power	30kw
EMBOSSING UNIT	Shape as per client's request
ON-LINE TWISTING WINDER	ring size	8-12'
ON-LINE TWISTING WINDER	motor	1.5kw

Monofilament Extruding Machine For Danling And Rope

Monofilament Extruding Machine For Danling And Rope
