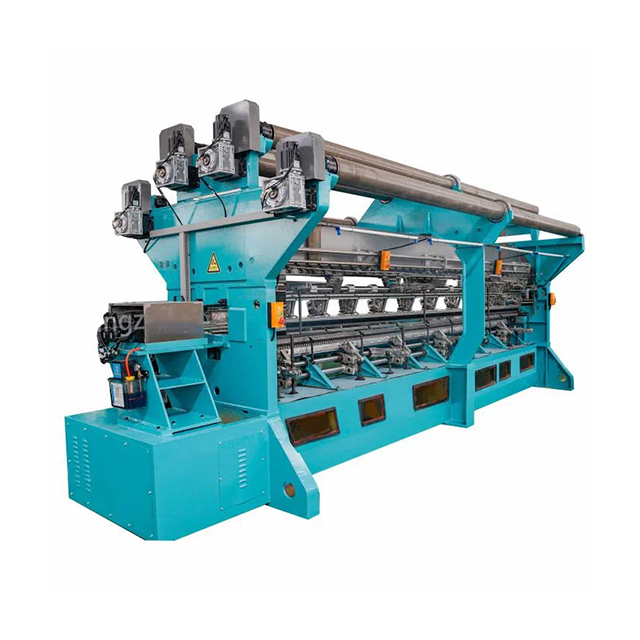

Double Needle Warp Knitting Machine

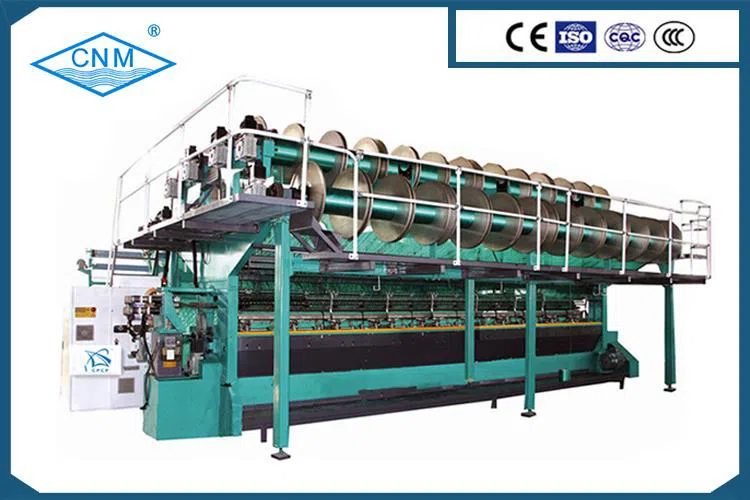

Double needle bar sports net/fishing net knitting machine

Application :This machine is used to produce double needle bar knotless sports nets and safty nets.

Technical parameters

1. Electrical Equipment Requiremen

1.1 Power requirement: 380V，50HZ
1.1 Frequency converter: FR-E740 (Mitsubishi)
1.2 Main motor:YE2－160M-6，5.5KW (Siemens )
1.3 EL motor： 0.75KW( Mitsubishi)
2.  Technical Specification
2.1 Working width: 135”
2.2 Bar Number: 8 bars
2.3 Needle plate: E6,Surface chrome plating,
2.4 Needle type: Latch needle block，5F-3, E6 ;Guide needle: 8374 E3
2.5 Pattern device: 8 set EL device
2.6 Take-up device: two stage 3-rollar take-up device
2.7 Batching device: individual Fabric batching device; motor power:0.75KW;
2.8 Yarn let-off device:6 sets beams with EBC.
2.9 Beam size:21”X21”

2.10 Total weight: about 7Tons

2.11 Overall size : 4000×4000×2500
